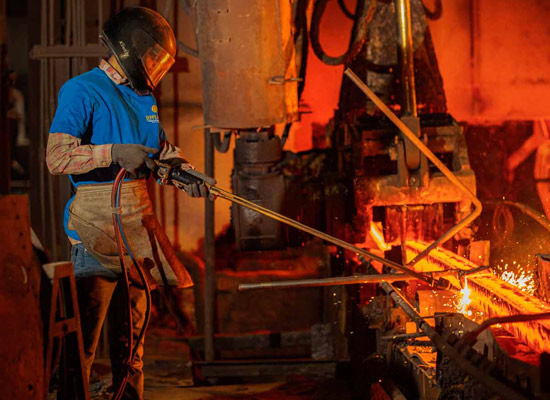

BILLETS
Jeppiaar Steel strives to produce best quality product by using high quality raw materials and value added products. By Billet, a semi product made through melting steel scrap is utilized to manufacture a wide range of products. Sponge iron in a Meticulously Controlled Furnace helps to maintain consistency in the chemical composition.
Billet production sizes
| 100 x 100mm | 110 x 110mm | 125 x 125mm |
|---|
Our ISI License number for Billets CM/L- 6700025808
Fe 500 / Fe 500 D / Fe 550
TMT Bars
Fe denotes ferrous material i.e. iron from which the reinforcement steel bars (TMT Bars) are produced. Fe 500, Fe 500 D and Fe 550 stands
for the base Yield Strength in N/mm2. Fe 500 grade TMT Bars are one stage up compared to Fe 415 grade TMT Bars on Mechanical property as Chemical composition.
Viz Fe 500 D and Fe 550 grades.
25mm
20mm
16mm
12mm
10mm
8mm
The Product data sheet is given below :
| Section | ISI Weight Maximum / Meter | JPR Weight Maximum / Meter | BIS Standard | ISI Bar Weight in Kg / 40 Feet | JPR Bundle Weight in Kg | No. of Rods Per Bundle |
|---|---|---|---|---|---|---|
| 08MM | 0.367 | 0.422 | 0.395 | 4.477-5.148 | 44.770-51.480 | 10 |
| 10MM | 0.574 | 0.660 | 0.617 | 7.003-8.052 | 49.021-56.364 | 7 |
| 12MM | 0.844 | 0.932 | 0.888 | 10.297-11.370 | 51.485-56.850 | 5 |
| 16MM | 1.501 | 1.659 | 1.580 | 18.312-20.240 | 54.936-60.720 | 3 |
| 20MM | 2.396 | 2.544 | 2.470 | 29.231-31.037 | 58.462-62.074 | 2 |
| 25MM | 3.735 | 3.965 | 3.850 | 45.567-48.373 | 45.567-48.373 | 1 |
JFASPL manufacture TMT Bars of various diameters 08 mm to 25 mm.
JFSPL process JEPPIAAR TMT as per IS 1786.
The IS Specifications and JEPPIAAR TMT values as tabulation below.
Chemical Composition
| Properties | Fe - 500 (BIS) | Jeppiaar TMT | Fe - 500D (BIS) | Jeppiaar TMT | Fe - 550 (BIS) | Jeppiaar TMT |
|---|---|---|---|---|---|---|
| Carbon | 0.30 (Max) | 0.17-0.25 | 0.25 (Max) | 0.17-0.23 | 0.30 (Max) | 0.17-0.25 |
| Phosphorous | 0.055 (Max) | 0.035-0.045 | 0.040 (Max) | 0.035 | 0.50 (Max) | 0.045 |
| Sulphur | 0.055 (Max) | 0.035-0.045 | 0.040 (Max) | 0.035 | 0.055 (Max) | 0.050 |
| Sulphur + Phosphorous | 0.105 (Max) | 0.070-0.090 | 0.075 (Max) | 0.065 | 0.100 (Max) | 0.090 |
Mechanical Properties
| Properties | Fe - 500 (BIS) | Jeppiaar TMT | Fe - 500D (BIS) | Jeppiaar TMT | Fe - 550 (BIS) | Jeppiaar TMT |
|---|---|---|---|---|---|---|
| Yield Strength | 500 Min | 520-550 | 500 Min | 520-550 | 550 Min | 570-600 |
| Tensile Strength | 545 Min | 630-660 | 565 Min | 630-660 | 585 Min | 680-710 |
| Elongation (%) | 12.0 Min | 17-22 | 16% Min | 17-22 | 10% Min | 16-20 |
Quality
JFASPL Quality team tests the TMT Bars for the changes in the Micro Structure in the in-house Laboratory and ensures that it meets relevant IS Specifications. Stringent testing through Universal Testing Machine (UTM) maintains the Yield Strength, Ultimate Tensile Strength, Elongation property, charphy V Notch, Impact values (J) at the required values. JFASPL are committed for delivery of High Quality Goods and Services, in time, up to the entire statisfaction of out customers, society and to all associates. JFASPL strive hard and achieve Zero defects and Zero rework in each and every activity at all stages.
BEST OF RAW MATERIALS
JFASPL source the raw materials from the finest suppliers. The entire manufacturing process is aimed towards reducing the wastage and improving the productivity.
Advanced Technologies
JFASPL acquires and implements latest technologies continously to improve the product quality. JFASPL is proud to have the longest hot charging platform in TamilNadu.
Any Shape at Any Time
JFASPL supply both straight as well as bent TMT bars. JFASPL uses automated bending technology,to achieve absolute accuracy,in a controlled environment
Timely Delivery
When it comes to delivery, JFASPL treat our delivery commitment seriously and ensures timely delivery of the finished goods.
